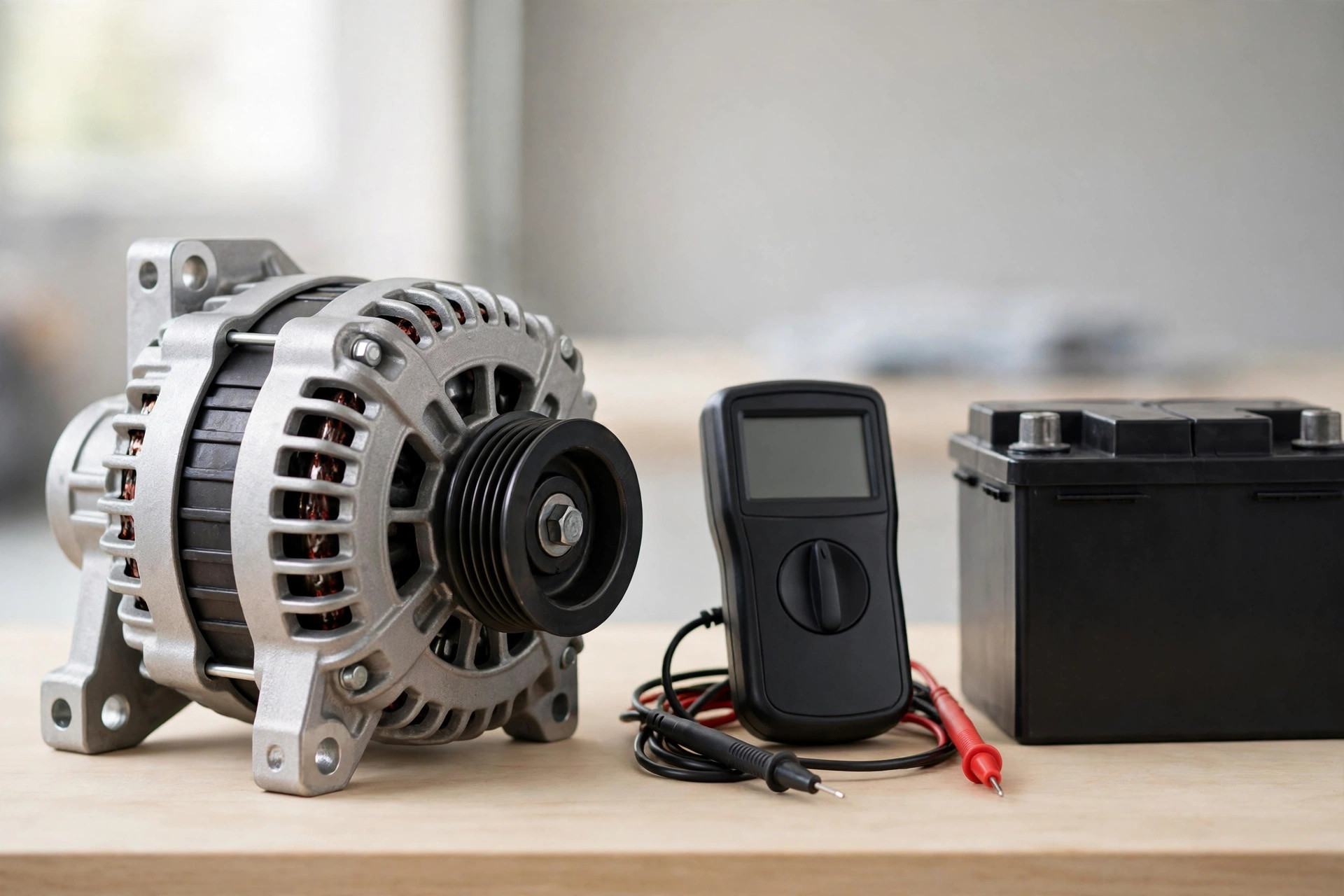

Alternator not charging: four readings before you replace it
The battery light comes on, the headlights seem dimmer than they were, and the van needed a boost twice this month. The obvious suspect is the alternator, and sometimes it is guilty — but on a Grand Caravan the charging system has several cheaper failure points that produce identical symptoms: a battery that can no longer hold a charge, a worn belt slipping under load, corroded terminals, a poor ground, or a fault in the control circuit that tells the alternator to work in the first place. Replacing the alternator on symptoms alone is how owners buy a new alternator and keep the same battery light. This guide runs the four multimeter readings that separate those causes in the right order, explains the one Caravan-specific trap almost no guide mentions — voltage regulation on these vans lives in the computer, not in the alternator — and covers the amperage check to make before ordering a replacement.
The battery light is a symptom, not a verdict
Start from what the alternator actually does: once the engine runs, it powers the van's electrics and refills the battery. If its output stops, the van does not stop with it — it runs on the battery alone, which is why a failed charging system gives you warning signs spread over miles rather than an instant stall: dimming or flickering lights, gauges misbehaving, accessories slowing, repeated flat batteries, and eventually an engine that shuts down when the battery is spent. That also defines the urgency. A van that is not charging can be driven only a short distance — far enough to reach a safe place or a shop, not far enough to finish the week's errands while you think about it. Every start and every mile on battery alone deepens the discharge and shortens the battery's life, so test promptly, and charge the battery with a proper charger before testing if it is deeply flat: no alternator test means anything against a battery too discharged to accept a charge normally.
Four readings, in order: the tested procedure
- Resting voltage — judge the battery first. With the engine off, switch the headlights on for a few minutes, then off again. That strips the surface charge, which otherwise flatters the reading. Now measure across the battery terminals. A fully charged battery in good condition holds about 12.6 volts. A battery that cannot reach or hold near that after charging is a battery problem, and it must be settled first — a weak battery makes a healthy alternator look bad and a new alternator work against a load it cannot fix.
- Running voltage — is it charging at all? Start the engine and measure at the battery terminals again. Healthy output sits between about 13.5 and 14.8 volts. A reading that stays at resting voltage, or below it, means the battery is receiving nothing: below 12 volts with the engine running, the alternator supply is effectively cut off and everything is running on the battery.
- Loaded voltage — does it hold under demand? Switch on the heavy loads: headlights, the blower fan on full, interior lights. The reading should remain around 14 volts. Voltage that sags and stays below about 13.5 volts under load is a charging supply that cannot keep up — the classic marginal alternator, slipping belt, or high-resistance cable result, separated by the next step.
- Voltage drop — alternator versus cables. Hold the engine at about 2,000 rpm with all electrical loads on. Measure at the alternator itself (red lead on its output terminal, black on its case), then at the battery terminals. If the two readings are within 0.5 volts of each other, the power and ground circuits between alternator and battery are sound, and a low reading truly belongs to the alternator or its control. If the gap is larger, the fault is in the path — corroded terminals, a damaged cable, a poor ground — and a new alternator bolted into that path will read exactly as badly.
What success looks like: four numbers written down, in order, that point at one component — battery, alternator, belt, or cables — instead of a suspicion pointed at the most expensive one. Inspect the belt while you are there: a belt that is glazed, cracked, or loose enough to slip under load fails step 3 without anything being wrong with the alternator at all, and an intermittent battery light can also come from worn alternator brushes making and breaking contact — which is alternator wear, but wear that arrives and leaves with vibration, so note whether the light flickers over bumps.
The PCM trap and the amperage check
Here is the Caravan detail that changes the diagnosis. On these vans the voltage regulator is not a component inside the alternator that a new alternator automatically renews. Regulation is performed by an electronic voltage regulator function integrated into the powertrain control module — the PCM — which commands the alternator through a generator field control wire. The practical consequence: if the PCM stops commanding, or that field wire is damaged or corroded, a perfectly good alternator produces nothing, and a brand-new alternator produces exactly the same nothing. In one documented case on a 2003 Grand Caravan that charged at startup and then lit the battery light minutes later, the field-wire test drew the line cleanly: watch the voltage on that wire as the light comes on — if it collapses, the computer side is implicated; if it holds, the alternator is. Chafed wiring near the alternator can also make the light come and go with a wiggle of the harness. None of this is an argument to fear the job; it is an argument to let step 4's result, and a field-circuit check when the pattern fits, decide which side of the engine bay the money goes to.
| Your readings | Most likely cause | Next move |
|---|---|---|
| Resting voltage low after a full charge | Battery at end of life | Replace or load-test the battery before any alternator work |
| Running voltage at or below resting voltage | No charge output | Check belt, connections, and the PCM field circuit; then the alternator |
| Good at idle, sags below ~13.5V under load | Marginal alternator, slipping belt, or cable resistance | Run the voltage-drop step to separate them |
| Alternator reading healthy, battery reading low, gap over 0.5V | Cable, terminal, or ground fault | Clean, repair, or replace the path — not the alternator |
| Over about 14.8V running | Overcharging — regulation fault | Shop diagnosis of the PCM regulation circuit; do not keep driving on it |
And before any alternator is ordered, verify the specification against the van rather than the catalogue's first result. Amperage is a fitment detail, not a family trait: early-2000s vans list both 136-amp standard and 160-amp optional units for the same engines, while the 3.6L Pentastar years use a 160-amp, 12-volt unit with a 6-groove pulley. Many of these alternators also use a decoupler (clutch) pulley — a worn decoupler makes belt-area noise and vibration that gets blamed on the alternator's bearings, and it is part of matching the replacement correctly. Match amperage, pulley, and connector to the van's build, and compare the new unit against the old one on the bench before it goes in.
If the alternator really has failed
Replacement itself is a conventional job: battery disconnected first, belt routing photographed before the belt comes off, the old unit's connections noted, and the replacement compared side by side before fitting. Two habits decide whether the new unit survives. First, fix what the tests found alongside it — a tired battery, a glazed belt, or green-corroded terminals will shorten a new alternator's life just as they confused the diagnosis. Second, re-run readings 2 and 3 after fitting and write them down: a healthy system shows the 13.5–14.8 volt running range and holds around 14 volts under full load, with the battery light staying off over bumps and at idle. Anything else means the diagnosis is not finished, and it is far better to learn that in the driveway than at the roadside with a second discharged battery.
Frequently asked questions
What voltage should the alternator put out? Measured at the battery with the engine running, about 13.5 to 14.8 volts, holding around 14 volts with headlights and blower on. At rest, a charged battery reads about 12.6 volts once surface charge is removed.
Can I keep driving with the battery light on? Only a short distance. With no charge output the van runs on the battery alone, and when the battery is spent the engine shuts down. Treat the light as a drive-to-safety warning, not a drive-for-a-week warning.
A shop says the alternator is fine but it still does not charge. What else can it be? On these vans, the regulation command comes from the PCM through the generator field wire, so a PCM fault or a damaged field wire produces a no-charge van with a healthy alternator. That is the check to ask for, alongside the voltage-drop test on the cables.
Owner information only, not professional mechanical advice. Charging-system faults that involve the PCM or wiring should be confirmed by a qualified technician with the service information for your exact model year.
